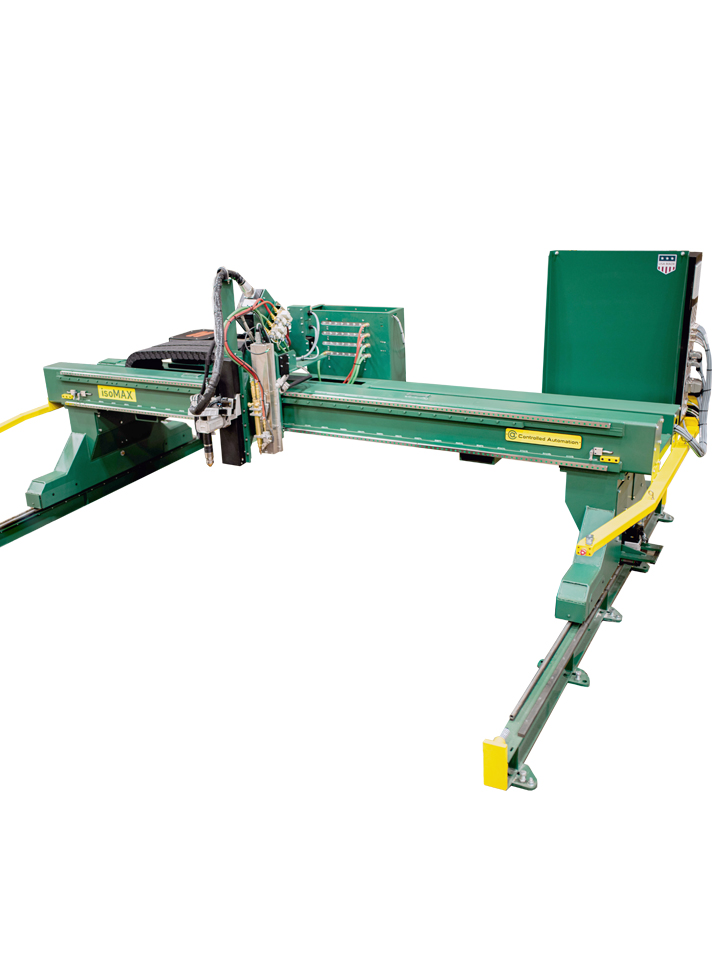

Since our inception in 1986, Controlled Automation has provided quality designed machines that do complex work with controls and components that last through lots of punishment. We built the isoMAX contour bevel machine no different. A machine with amazing capabilities beyond any other on the market and built to last longer than who we compete against and who you compete against. Available up to 23’ft wide and 153’ft long with up to two Orbital™ contour bevel plasma stations and up to 4 oxyfuel torches.
The flagship Contour Bevel for Controlled Automation plate machinery was built from the ground up to produce high-precision tolerance contour parts with 710° degrees of rotation and the highest speeds of acceleration.

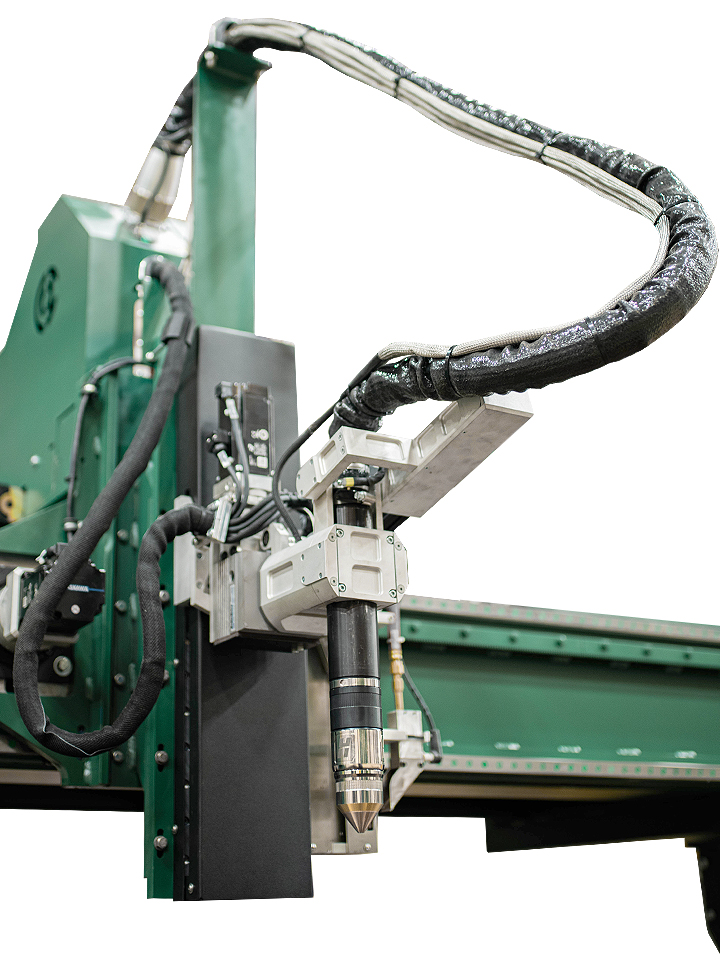

The Orbital contour bevel was developed for a wide range of applications and plate beveling beyond any other system on the market. It is specially engineered for the new isoMAX shape cutting machine for up to two Orbital
stations and the GPF-10XC and GPD+ combination drilling and burning systems.

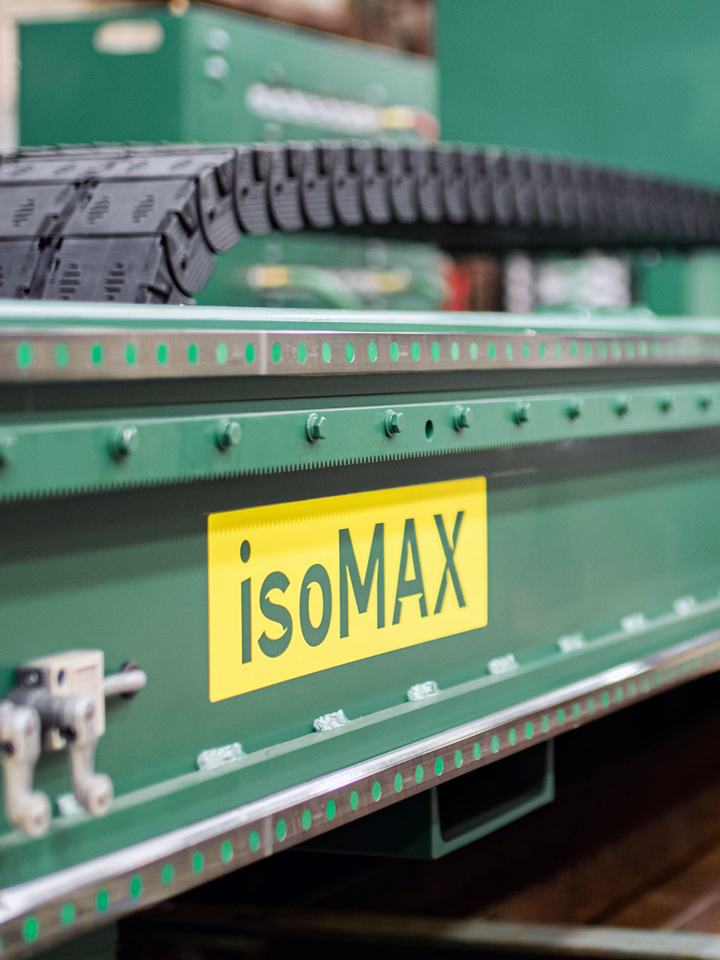

The machine bridge is a tubular steel section that has been stress relieved after welding, then machined down its length to provide a flat, straight seat for the guide rails. This provides superior accuracy for all tools. The tubular steel section is filled with a material designed to lower its resonant frequency which reduces vibration while high speed carbide drilling. The bridge is driven along the rail system length by use of dual AC servo motors (one on each side) coupled to low backlash planetary gear reducers. Helical rack and pinions are used to reduce cogging and vibration as normally witnessed when using straight rack and pinions.
Controlled Automation offers the cutting edge (no pun intended) in advanced shape nesting software and beyond. Our Nesting software is used throughout all Controlled Automation machinery for easy navigation between machines for the operator. We also allow seamless integration with a variety of communication tools unavailable on any other cutting machine in the world. Controlled Automation imports from all current 3D drafting models (such as Design Data SDS-2 and Tekla detailing software) and communicates with the latest inventory management software (such as FabTrol and FabSuite) to handle the cutting edge of production.
The bridge is supported by four pivoting wheel assemblies. Each pivoting wheel assembly houses two hardened support wheels for a total of eight wheel supports. By supporting the gantry with eight wheels in contact with the rail surface instead of four, the lives of the wheels, support rail, and wheel bearings are doubled. The wheel assemblies on the guide side are “V” groove wheels which guide the machine on the same path as the guide side rail rolling surface. The wheel assemblies on the opposite side of the gantry are flat across the wheel face. This allows for thermal expansion and compliance between the machine and the rail system interfaced. The rail rolling surfaces are hardened and ground round shafting running the length of each rail providing a very durable long lasting support for the bridge.
High Definition CuttingPrecision parts are produced using Hypertherm's True Hole process as standard on our HPRxd series machines for AISC approved bolted hole connections for the structural fabricators.
Control SimplicityThe operation of the machine is designed to be user friendly. The isoMAX operating software provides a variety of ways to program or import parts or a nested plate of multiple parts. Parts can be created or imported from multiple file formats (CNC, DXF, DSTV, etc..)

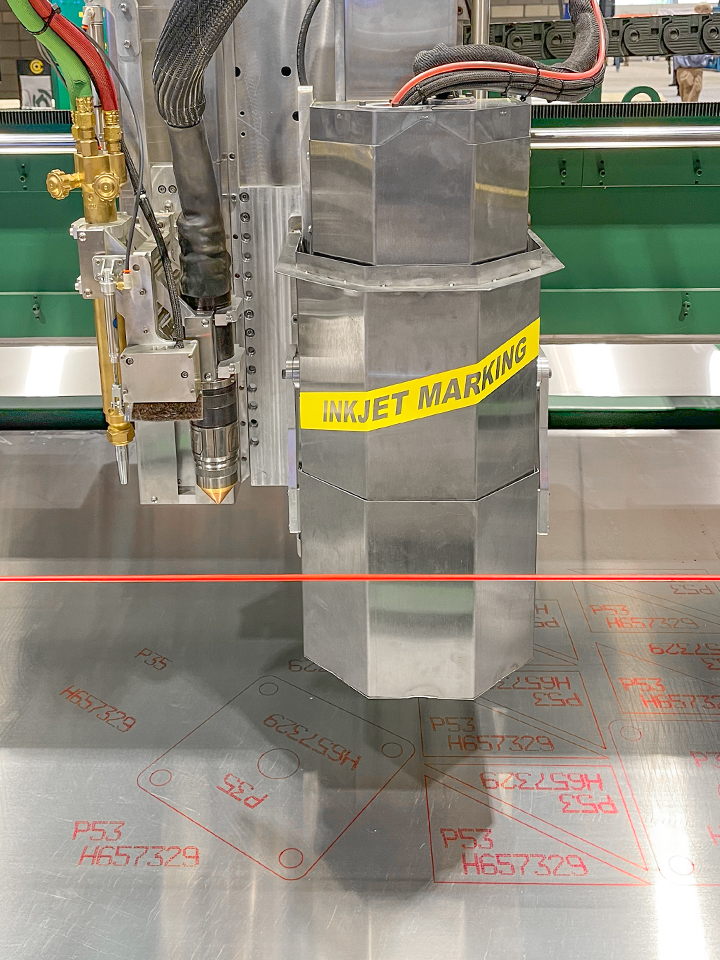

Part MarkingPart marking is accomplished by using a lower amperage setting in a plasma system. When automatic gas control is used, the Controlled Automation software communicates with the plasma to adjust the gas flows, gas pressures, and the amperage setting on the plasma without the need to change consumables.
Down-Draft or Water Cutting SurfacesZoned down-draft systems or water tables are available on all model isoMAX machines. Dross pick-out trays are included in each design for easy clean out.
Superior Service & SupportAs the most trusted name in service and support - Controlled Automation leads the industry for inexpensive parts and the highest quality service that speaks more from our loyal customers than any marketing. If you own a Controlled Automation machine, you are our customer and we will support you for life.
Effective Cutting Length | 6' to 153' FT | |||
Effective Cutting Width | 6' to 23' | |||
Drive Configuration | Rack and Pinion, with AC digital servo amplifiers | |||
Machine Speeds | Rapid Traverse 1,000 IPM | |||
Positioning Accuracy | ±.007in. | |||
Bevel Rotation | 710° degrees | |||
Body Construction | Ultra-Low Resonance Gantry | |||
Dual Side Drive | All Models | |||
TOOLS | Specs | |||
4 Oxy-Fuel torch (max) | Automatic gas control | |||
2 Plasma bevel stations (max) | 260 amp (1-1/4" pierce) Automatic gas control | |||
